Rigid, Stable, Accurate
Rigid, Stable, Accurate

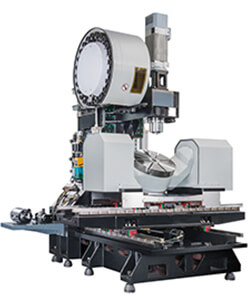

RUGGEDLY CONSTRUCTED THROUGHOUT TO PROVIDE LIFETIME ACCURACY YEAR AFTER YEAR
- The major structural parts are manufactured form high quality Meehanite cast iron (GB 300),
tempered for stress relief with hardness over 190HB. - 45mm Roller type linear ways on X, Y, Z axis increased stability.
- X, Y, Z axis are transmitted with class C3, Ø40mm ball screws.

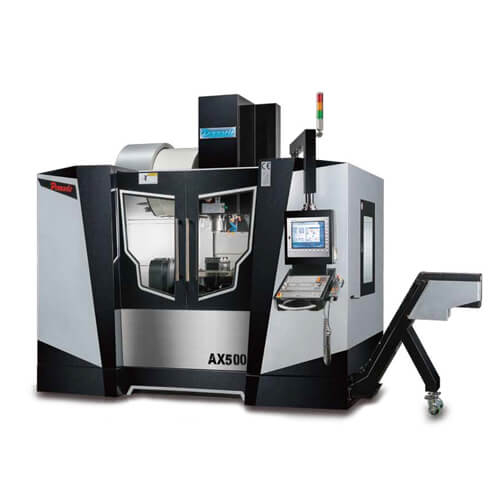

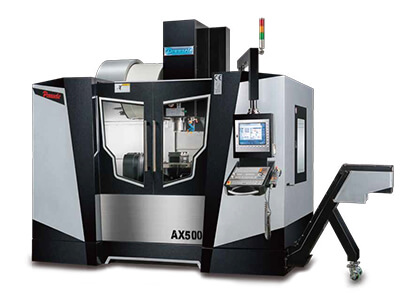

HIGH SPEED 5 AXES M/C

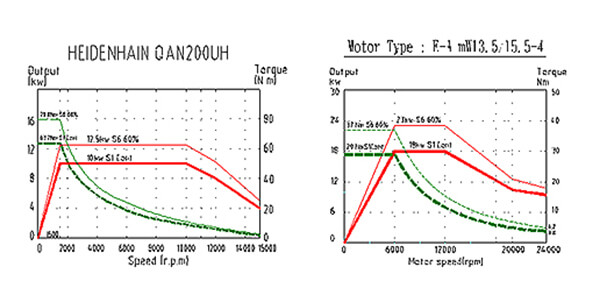

ISO40 15000rpm
HSKA63 24000rpm

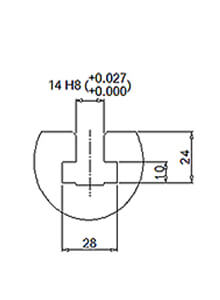

Table size500MM

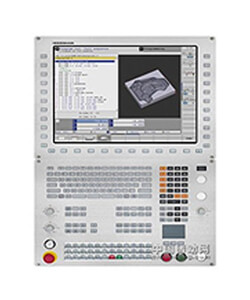

Heidenhain TNC640

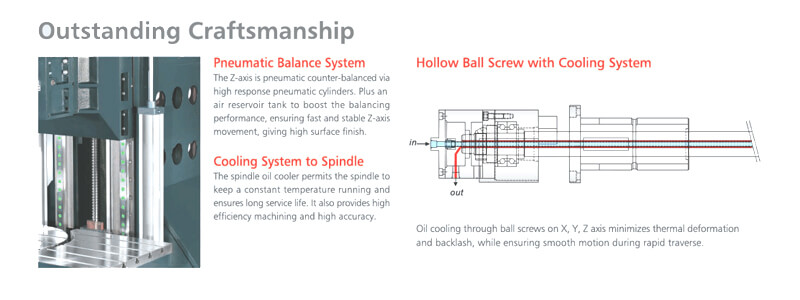

COOLANT THROUGH BALL SCREW (STANDARD)
Coolant through ball screws on X, Y axis minimizes thermal deformation and backlash,
while ensuring smooth motion during rapid traverse.
PNEUMATIC BALANCE SYSTEM
The Z-axis is pneumatic counter-balanced via high response pneumatic cylinders.
Plus an air reservoir tank to boost the balancing performance, ensuring fast and stable Z-axis movement, giving high surface finish.
COOLING SYSTEM TO SPINDLE
The spindle oil cooler permits the spindle to keep a constant temperature running and ensures long service life.
It also provides high efficiency machining and high accuracy.
