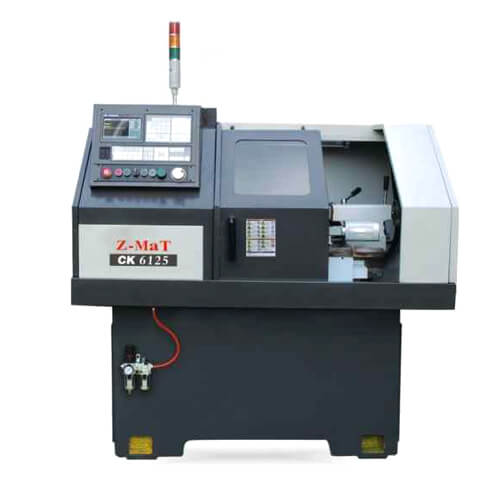

CK6125

Machine Characteristics
Heavy headstock & large bore. Heavy quality cast base & lathe bed, high torque with good spindle speed, hardened & ground bed ways, good for turning long workpieces, centralized, lubrication system.

Standard Features

  • 3-Jaw Chuck or Collet
  • 4-Station Tool Post
  • Manual Tail Stock
  • Center Sleeve
  • Automatic Lubrication System
  • Automatic Coolant System

Optional Features

  • Different Chucks
  • Different CNC Control Systems
  • Hydraulic Tail Stock
  • Higher Spindle Speed
  • Larger Diameter Spindle Bore

Categories: , , Tags: ,

Capacity

Chuck size: Collet, *5”
Max Swing Dia. Over Bed: ∅250mm
Max Workpiece Length: 270mm(Collet), 170mm(Chuck)
Max Swing Dia. Over Slide: ∅130mm

Spindle

Spindle bore: ∅37mm
Bar Dia. Capacity: ∅32mm
Spindle nose: ∅68 1:4
Spindle speed: 3000 rpm
Main motor power: 3.0KW

Axis

X axis travel: 220mm
Z axis travel: 270mm
X/Z rapid traverse: 6/9m/min

Toolspost

Type of toolpost: 4-station toolpost,*gang type
No of tool stations: 4nos
Tool shank size: 16×16mm

Tailstock

Type of tailstock: Manual, * Pneumatic, *Hydraulic
Taper of tailstock quill: MT3
Travel of tailstock quill: 80mm
Travel of tailstock: 220mm

Structure

Bed width: 260mm
Guideway type: Hardway

Others

Power capacity: 5.8kVA
Overall dimension(LxWxH): 1500×1250×1450mm
Weight(about): 1100Kg
