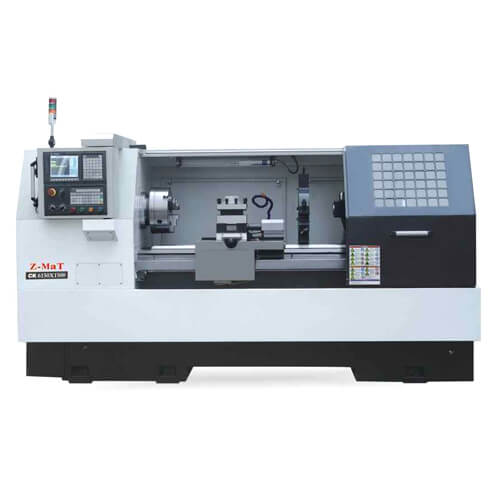

CK6150

Machine Characteristics
Heavy headstock & large bore. Heavy quality cast base & lathe bad, high torque with good spindle speed, hardened & ground bed ways, good for turning long workpieces, centralized, lubrication system.

Standard Features

  • 3-Jaw Chuck or Collet
  • 4-Station Tool Post
  • Manual Tail Stock
  • Center Sleeve
  • Automatic Lubrication System
  • Automatic Coolant System

Optional Features

  • Different Chucks
  • Different CNC Control Systems
  • Hydraulic Tail Stock
  • Higher Spindle Speed
  • Larger Diameter Spindle Bore

Categories: , , Tags: ,

Capacity

Chuck size: Collet, *12”
Max Swing Dia. Over Bed: ∅500mm
Max Workpiece Length: 750mm/1000mm/1500mm
Max Swing Dia. Over Slide: ∅290mm

Spindle

Spindle bore: ∅81mm
Bar Dia. Capacity: ∅70mm
Spindle nose: A2-8
Spindle speed: 1600 rpm, *2500rpm
Main motor power: 7.5KW

Spindle bore: ∅105mm
Bar Dia. Capacity: ∅91mm
Spindle nose: *A2-11
Spindle speed: 1000 rpm

Spindle bore: ∅120mm
Bar Dia. Capacity: ∅110mm
Spindle nose: *A2-11
Spindle speed: 1000 rpm

Axis

X axis travel: 320mm
Z axis travel: 750mm/1000mm/1500mm
X/Z rapid traverse: 6/9m/min

Toolspost

Type of toolpost: 4-station toolpost,*gang type
No of tool stations: 4nos
Tool shank size: 25×25mm

Tailstock

Type of tailstock: Manual, *Hydraulic
Taper of tailstock quill: MT5
Travel of tailstock quill: 130mm
Travel of tailstock: 600mm

Structure

Bed width: 400mm
Guideway type: Hardway

Others

Power capacity: 14kVA
Overall dimension(LxWxH): 2430×1200×1600mm
Weight(about): 3000Kg
