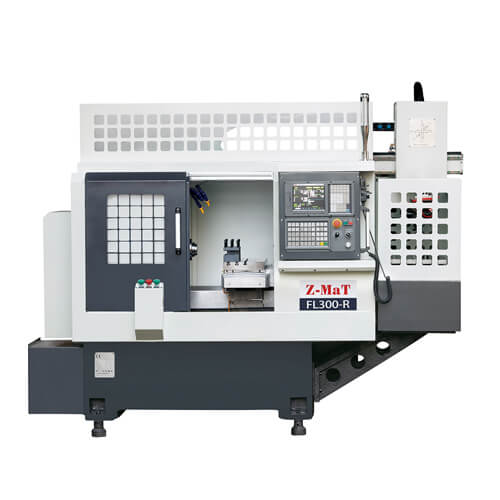

FL300-R

Machine Characteristics

  • SL6-R and FL300-R are integrated with Gantry Robot as a unit, designed with a compact size. They can be fitted in a standard container which can reduce installation and freight costs hugely, meanwhile, the long-distance transportation damage risk is eliminated.
  • Most A-Mat CNC machines have standard solutions with Z-Mat self-made Gantry Robot such as Star SL6, Star SL8, TN500-S, STL8-S, Flash FL300, DA66G, etc.
  • Heavier loading weight is available as an option.
  • Steel beams and aluminium alloy lift columns are quality foundations.

Standard Features

  • 8-Station Turret (SL6-R)
  • Gang Type (FL300-R)
  • Automatic Air Blow
  • Hydraulic 3-Jaw Chuck 6″
  • SYNTEC Robot Controller
  • Factory Integrated Gantry
  • Swivel Head Robot Chuck
  • Dot Matrix Feeder Station

Optional Features

  • Tool Setter
  • Live Tooling
  • Different Turret
  • Oil Mist Collector
  • Automatic Chip Conveyor
  • Customized Automatic Gripper
  • Different Spindle Bore Diameters
  • Customized Work Feeder Station

Categories: , , Tags: ,

Capacity

Chuck/ Collet: Hydraulic collet, *Hydraulic chuck 6″
Max. length of Workpiece: 80mm
Max. swing Dia. over Bed: ∅300mm
Max. swing. Dia. over Slide: ∅135mm

Spindle

Spindle Bore: ∅48mm
Max. Bar Capacity: ∅40mm
Spindle Nose: A2-5
Max. Spindle speed: 3000rpm *4500rpm
Spindle power: 5.5/ 7.5kW

Spindle Bore: *∅55mm
Max. Bar Capacity: *∅46mm
Spindle Nose: A2-5
Max. Spindle speed: *2500rpm,*4500rpm,*5000rpm
Spindle power: 5.5/ 7.5kW

Spindle Bore: *∅62mm
Max. Bar Capacity: *∅52mm
Spindle Nose: *A2-6
Max. Spindle speed: *2000rpm,*4000rpm
Spindle power: 5.5/ 7.5kW

Axis

X travel: 350mm
Z Axis Travel: 300mm
X/ Z Axis Rapid Traverse: 25/ 25 m/min
Max. Feed Speed: 8 m/ min.

Turret

No. of Tool Stations: 4-6
Tool Shank Size: 20×20mm

Gantry Robot

Controller: Syntec
Lift Capacity: 6Kg
Workpiece Capacity: 1Kg, *2.5Kg
Rapid Traverse: 80m/min
Transmission Type: Gear Type
Guideway Type: Linear Guideway
Repeatability Position:±0.05mm

Others

Power Capacity: 10kVA
Overall Dimension(L×W×H) : 3010x1750x2430
Weight(about): 2500Kg
