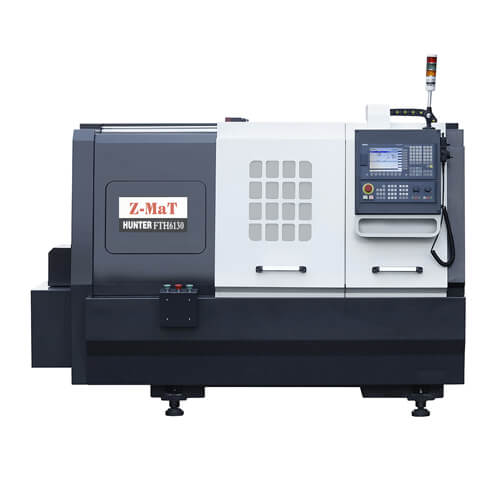

FTH6130

Machine Characteristics
Competitive priced CNC Turning Center – when you need a high-quality CNC lathe that has BOTH – a high-quality tool post and tailstock.Built atop the uniquely designed solid cast base and lathe bed found in the larger FTH lathe models.

  • The tailstock is set on its own guideway, parallel to the main bed ways. This structure is highly rigid and accurate.
  • Center-mounted ball screws eliminate torque–providing better dynamic properties and greater stability over the life of the machine.
  • Servo drives on X/Z axes. The spindle can be driven by VFD or Servo.
  • Various control systems, chucks, and tool mounting systems are available.


Standard Features

  • Manual 3-Jaw Chuck
  • 4-Station Tool Post
  • Manual Tailstock
  • Ergonomic Operator Panel Design & MPG
  • Automatic Lubrication System
  • Automatic Coolant System
  • Work Lamp & Built-In Safety Features

Optional Features

  • Different Chucks
  • 8-Station Turret
  • Different Control Systems
  • Hydraulic Tailstock
  • Bar Feeder
  • C Axis & Live Tooling
  • Steady Rest & Hydraulic Follow Rest
  • Gear Box

Categories: , , Tags: ,

Capacity

Chuck Size: 6″
Max.Swing Dia. Over Bed: Ø300mm
Max. Workpiece Length(center to center): 400mm(collet),300(chuck)
Max. Swing Dia. Over Slide: Ø150mm

Spindle

Spindle Bore: Ø48mm
Max. Bar Capacity: Ø40mm
Spindle Nose: A2-5
Max. Spindle speed: 3000rpm,
Spindle Power: 3.7kW, *5.5kW

Axis

X Axis Travel: 280mm
Z axis travel: 400mm
X/Z axis rapid traverse: 9/12m/min

Toolspost

4-Station Toolpost, *8-Station Turret
No. of tool stations: 4

Tailstock

Tailstock Type: Manual, *Hydraulic
Quill Taper: MT3
Tailstock Quill Travel: 100mm
Tailstock Travel: 350mm

Others

Bed Type/guideway: Flat/LM
Power Capacity: 9KVA
Overall Dimension(L×W×H): 1540x1010x1570mm
Weight(about): 1500Kgs
