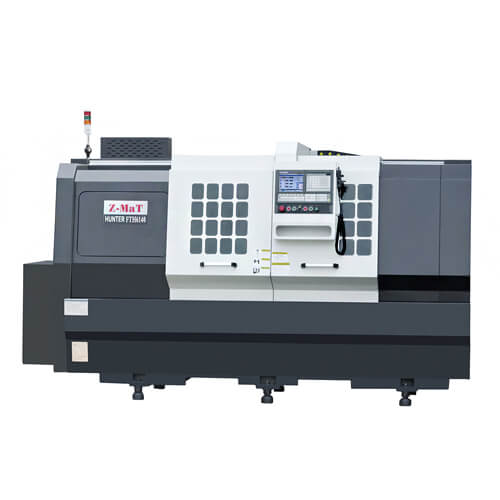

FTH6140

Machine Characteristics
Competitive priced CNC Turning Center – when you need a high-quality CNC lathe that has BOTH – a high-quality tool post and tailstock. Built atop the uniquely designed solid cast base and lathe bed found in the larger FTH lathe models.

  • The tailstock is set on its own guideway, parallel to the main bed ways. This structure is highly rigid and accurate.
  • Center-mounted ball screws eliminate torque–providing better dynamic properties and greater stability over the life of the machine.
  • Servo drives on X/Z axes. The spindle can be driven by VFD or Servo.
  • Various control systems, chucks, and tool mounting systems are available.

Standard Features

  • Manual 3-Jaw Chuck
  • 4-Station Tool Post
  • Manual Tailstock
  • Ergonomic Operator Panel Design & MPG
  • Automatic Lubrication System
  • Automatic Coolant System
  • Work Lamp & Built-In Safety Features

Optional Features

  • Different Chucks
  • 8-Station Turret
  • Different Control Systems
  • Hydraulic Tailstock
  • Bar Feeder
  • C Axis & Live Tooling
  • Steady Rest & Hydraulic Follow Rest
  • Gear Box

Categories: , , Tags: ,

Capacity

Chuck Size: 10″, *15″
Max.Swing Dia. Over Bed: Ø500mm
Max. Workpiece Length(center to center): 750mm/ 1000mm/ 1500mm/2000mm
Max. Swing Dia. Over Slide: Ø290mm

Spindle

Spindle Bore: Ø62mm
Max. Bar Capacity: Ø52mm
Spindle Nose: A2-6
Max. Spindle speed: 2000rpm, *4000rpm
Spindle Power: 7.5kW, *11.0kW

Spindle Bore: *Ø55mm
Max. Bar Capacity: *Ø46mm
Spindle Nose: *A2-5
Max. Spindle Speed: *2500rpm
Spindle Power: *7.5kW, *11.0kW

Spindle Bore: *Ø75mm
Max. Bar Capacity: *Ø65mm
Spindle Nose: *A2-8
Max. Spindle Speed: *1600rpm
Spindle Power: *7.5kW, *11.0kW

Axis

X Axis Travel: 320mm
Z axis travel: 750mm/ *1000mm/ *1500mm/ *2000mm
X/Z axis rapid traverse: 9/15m/min

Toolspost

4-Station Toolpost, *8-Station Turret
No. of tool stations: 4+2, *8
Tool Shank Size: 25×25

Tailstock

Tailstock Type: Manual, *Hydraulic
Quill Taper: MT5
Tailstock Quill Travel: 130mm
Tailstock Travel: 600/ 850/ 1350/ 1850

Others

Bed Type/guideway: Flat/LM
Power Capacity: 14KVA
Overall Dimension(L×W×H): 2725(2975)(3475)(3970)x1600x1850mm
Weight(about): 3100Kgs/ 3350Kgs/ 3850Kgs/ 4400Kgs
