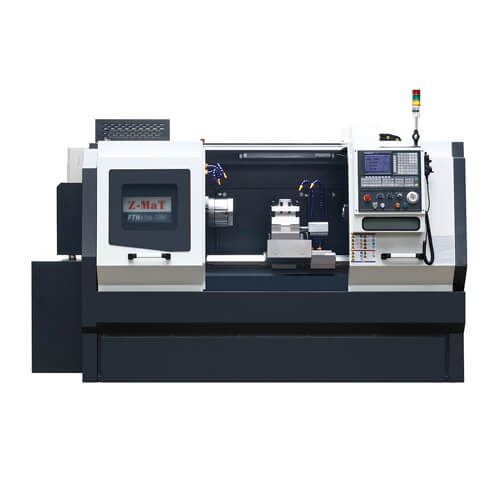

FTH6166

Machine Characteristics
Competitive priced CNC Turning Center – when you need a high-quality CNC lathe that has BOTH – a high-quality tool post and tailstock. Built atop the uniquely designed solid cast base and lathe bed found in the larger FTH lathe models

  • The tailstock is set on its guideway, parallel to the main bed ways. This structure is highly rigid and accurate.
  • Center mounted ball screws eliminate torque–providing better dynamic properties and greater stability over the life of the machine.
  • Servo drives on X/Z axes. The spindle can be driven by VFD or Servo.
  • Various control systems, chucks, and tool mounting systems are available.


Standard Features

  • Manual 3-Jaw Chuck
  • 4-Station Tool Post
  • Manual Tailstock
  • Ergonomic Operator Panel Design & MPG
  • Automatic Lubrication System
  • Automatic Coolant System
  • Work Lamp & Built-In Safety Features

Optional Features

  • Different Chucks
  • 8-Station Turret
  • Different Control Systems
  • Hydraulic Tailstock
  • Bar Feeder
  • C Axis & Live Tooling
  • Steady Rest & Hydraulic Follow Rest
  • Gear Box

Categories: , , Tags: ,

Capacity

Chuck Size: 15″,
Max.Swing Dia. Over Bed: Ø700mm
Max. Workpiece Length(center to center): 1000mm/ 1500mm/ 2000mm(centers)
Max. Swing Dia. Over Slide: Ø480mm

Spindle

Spindle Bore: Ø120mm
Max. Bar Capacity: Ø110mm
Spindle Nose: A2-11
Max. Spindle speed: 1000rpm
Spindle Power: 15kW,

Axis

X Axis Travel: 380mm,*450mm
Z axis travel: 1000mm/ 1500mm/ 2000mm
X/Z axis rapid traverse: 9/ 15 m/min

Toolspost

4-Station Toolpost, *8-Station Turret
No. of tool stations: 4+2, *8

Tailstock

Tailstock Type: Manual, *Hydraulic
Quill Taper: MT5, *MT6
Tailstock Quill Travel: 150mm
Tailstock Travel: 850mm/ 1350mm/ 1850mm

Others

Bed Type/guideway: Flat/LM
Power Capacity: 18KVA
Overall Dimension(L×W×H): 3500(4000)(4500)x1955x2110mm
Weight(about): 5000Kgs/ 5600Kgs/ 6400Kgs
