Machine Characteristics

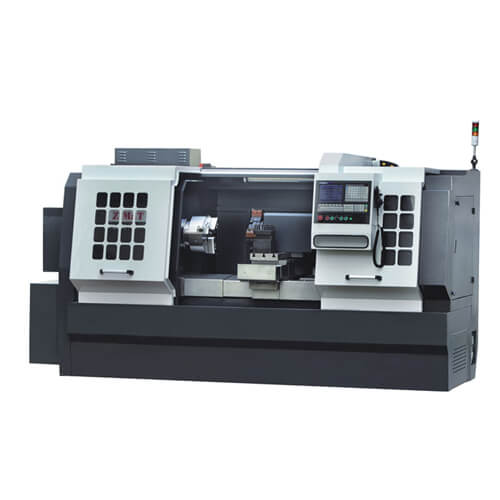

Comprehensive priced CNC Turning Center – when you need a high-quality CNC lathe that has BOTH – a high-quality turret and tailstock.

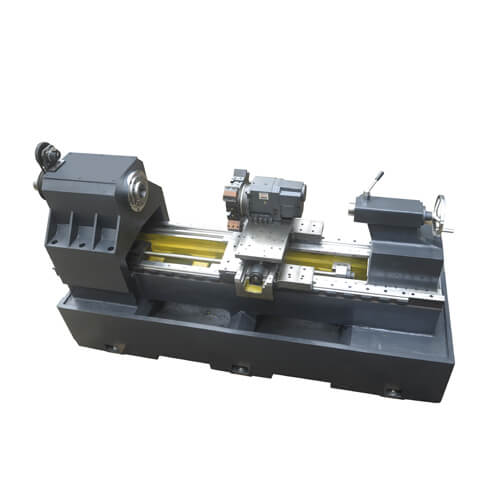

Built atop, the uniquely designed one-piece solid cast base and lathe bed found in the larger FTL lathe models.

  • The tailstock is set on its own guideway, parallel to the main bed ways. This structure is highly rigid and accurate.
  • Linear guideways are protected by telescoping stainless steel covers–maximizing ball screw protection and extending tool life.
  • Center-mounted ball screws eliminate torque–providing better dynamic properties and greater stability over the life of the machine.
  • Servo drives on X/Z axes. The spindle can be driven by VFD or Servo.
  • Various control systems, chucks, and tool mounting systems are available.

Standard Features

  • Manual 3-Jaw Chuck
  • 4-Station Tool Post Plus Gang Tool Plate
  • Manual Tailstock
  • Ergonomic Operator Panel Design & MPG
  • Automatic Lubrication System
  • Automatic Coolant System
  • Work Lamp & Build-In Safety Features

Optional Features

  • Different Chucks
  • Different Control Systems
  • 8-Station Turret (except FTL300)
  • Hydraulic Tailstock
  • Bar Feeder
  • C Axis & Live Tooling
  • C Axis & 12 Station Power Turret (for big model)

Categories: , , Tags: ,

Capacity

Chuck Size: 12″, *15″
Max.Swing Dia. Over Bed: Ø550mm
Max. Workpiece Length: 450mm/ 750mm/ 1250mm/ 1750mm
Max. Swing Dia. Over Slide: Ø350mm

Spindle

Spindle Bore: Ø105mm
Max. Bar Capacity: Ø91mm
Spindle Nose: A2-11
Max. Spindle speed: 1000rpm
Spindle Power: 11.0kW, *15.0kW

Spindle Bore: *Ø105mm
Max. Bar Capacity: *Ø91mm
Spindle Nose: *A2-8
Max. Spindle speed: *2000rpm
Spindle Power: *11.0kW * 15.0kW

Spindle Bore: *Ø120mm
Max. Bar Capacity: *Ø110mm
Spindle Nose: *A2-11
Max. Spindle speed: *1000rpm
Spindle Power: *11.0kW, *15.0kW

Axis

X Axis Travel: 280mm
Z axis travel: 700mm/ 1000mm/ 1500mm/ 2000mm
X/Z axis rapid traverse: 15/15m/min, 20/20m/min

Toolspost

8-Station Turret，*12-Station Turret
No. of tool station: 8+2, *12+2

Tailstock

Manual, *Hydraulic
Quill Taper: MT5
Tailstock Quill Travel: 100mm

Others

Bed Type/guideway: Flat/LM
Power Capacity: 18kVA
Overall Dimension(L×W×H): 3200x1600x2010mm(the shortest)
Weight(about): 4200Kgs/ 4500Kgs/ 5000Kgs/ 5300Kgs
