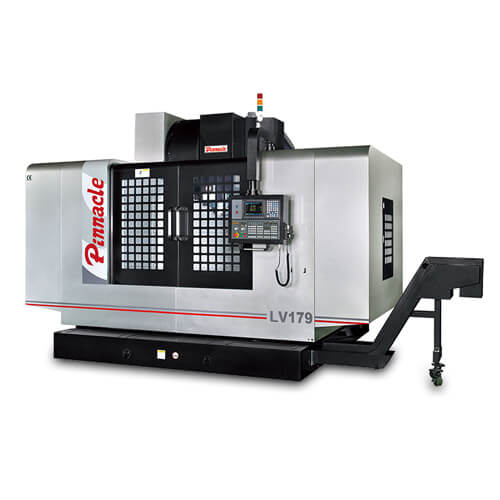

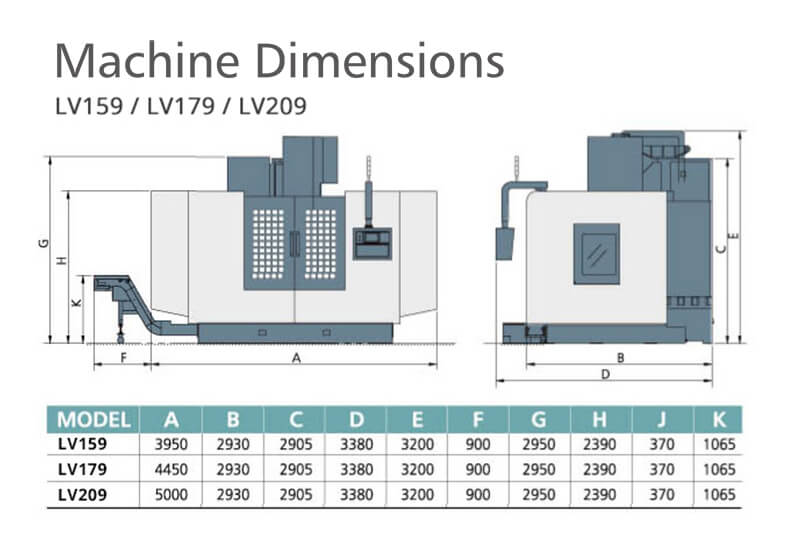

Features
RUGGED CONSTRUCTION ASSURES OPTIMUM RIGIDITY AND STABILITY.

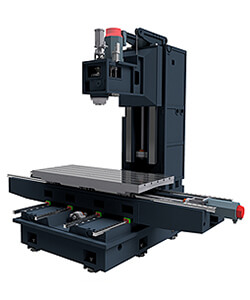

The major structural parts are manufactured from high quality Meehanite cast iron (GB 300),
tempered for stress relief with hardness over 190HB.
Roller guideway on the three axes ensure smooth movement.
Three axes are equipped with class C3 and 50mm diameter precision ball screws.
Counter-balance weight moves on a guide shaft for added stability and straightness accuracy.
China Patent No.: 416211

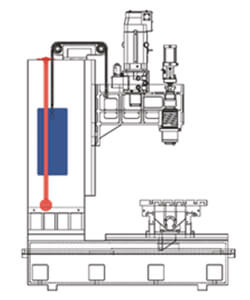

COUNTER WEIGHT BALANCE SYSTEM
Exclusively designed counter weight balance system. The counter-balance weight moves on a guide
shaft to assure movement straightness accuracy.
There is no vibration in the forward/backwards and in the right/left directions.
This creates superior workpiece surface accuracy to meet various mold machining requirements. Patented in Taiwan and China.
Taiwan Patent No.: 177230
RIGID, PRECISION SPINDLE
ASSURES HIGH QUALITY MACHINING
- Supported by superior precision P4 class bearings, the spindle provides an extra wide range of machining capacity and high speed.
- Floating unclamping system assures tool unclamping force will not transmit to the spindle bearings.
It provides stable tool clamping and unclamping with the spindle and extends the spindle bearings’ life. - The spindle is a cartridge-type.
- Choice of various spindle speeds – 8,000, 10,000 and 12,000 rpm.
- The circulating oil cooling system on the spindle head prevents thermal expansion and offers the best precision machining environment.
CHIPS FLUSHING NOZZLES
Coolant flushing nozzles on rear inner wall of guard prevent jam of chips during operation.
COUPLINGS
Directly connected with ball screw and AC servo motors, the high precision flexible couplings offer the best rigidity
and keeps the accuracy of axial linear assembly under high speed movement.
AUTOMATIC LUBRICATION SYSTEM
The Lubrication System automatically measures and accurately distributes the oil to the slide ways, ballscrews and bearings.
CONTROL SYSTEM
The centralized control panel employs a touch sensing screen for user-friendly operation.
The humanized designed control panel has an elegant appearance.
Various controllers can be chose – Mitsubishi, Heidenhain, Fanuc and Siemens.
SPLASH GUARD
The full-enclosed splash guard meets environmental protection and CE requirements.
It offers users a comfortable working environment.
