LV5/LV8
Vertical Machining Center

LV’s Designed for Extra Value and Build for Optimum Performance
Linear Way Series
When jobs call for highly efficient machining and outstanding accuracy is critical, a Pinnacle linear way series vertical machining centre is the perfect solution. The LV5/LV8 is a multifaceted series. It is not only ideal for smaller factories and machine shops. It covers applications ranging from watches and timepieces to 3C and 4C industries. It is also suitable for manufacturing moulds for joints, teeth, and bones used in the medical industry. If you are serious about increasing machine productivity and profits, the Pinnacle linear way series can help you.

Categories: , , Tags: , , ,

Features

LV5/LV8
  • Three axes travel 510(810) x 410(510) x 510 mm
  • Rapid traverse rates 36 / 36 / 36 m/min.
  • Spindle speed up to 36,000rpm
  • Spindle motor 3.7 / 5.5 kw
  • Spindle taper ISO30 (ISO 40)
  • X, Y, Z axis linear guideway

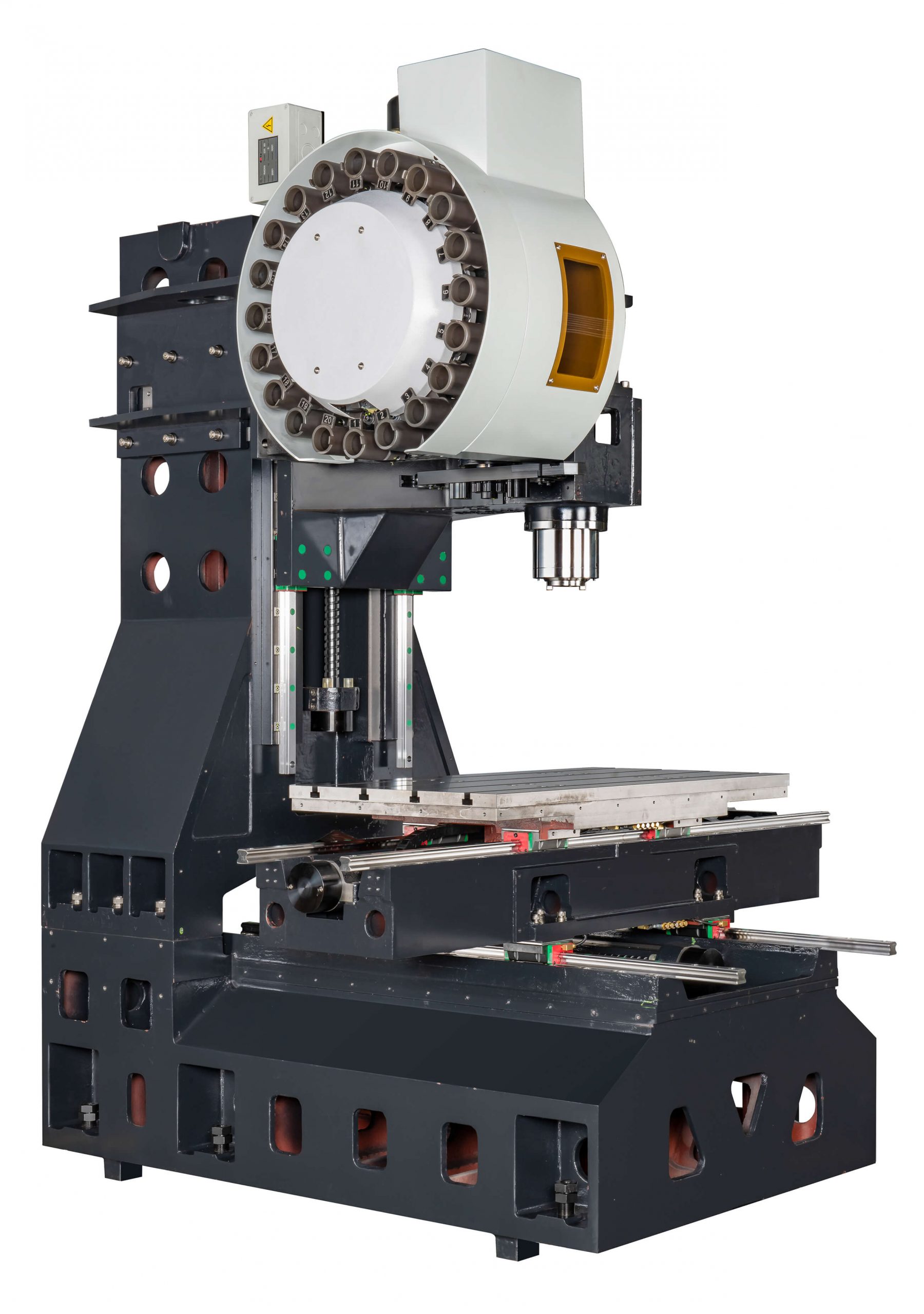

RUGGED CONSTRUCTION ASSURES OPTIMUM RIGIDITY AND STABILITY.
  • Meehanite Casting Iron (FC30), tempered to relieve internal stress.
  • High-precision manufactured machine components ensure the highest accuracy.
  • 30mm width high precision linear guideway.
  • 32mm diameter high precision ball screws.
  • Highest rigidity and milling performance with rapid traverses of 36 m/min. in 3 axes.
  • The a compact body and capability of high speed machining, the machine demonstrates excellent performance in machining mass production parts.

RIGID, PRECISION SPINDLE

ASSURES HIGH QUALITY MACHINING
  • Supported by superior precision P4 class bearings, the spindle provides an extra wide range of machining capacity and high speed.
  • Floating unclamping system assures tool unclamping force will not transmit to the spindle bearings. It provides stable tool clamping and unclamping with the spindle and extends the spindle bearings’ life.
  • Choice of various spindle speeds – 12000, 15000, 24000, 36000rpm.
  • The circulating oil cooling system on the spindle head prevents thermal expansion and offers the best precision machining environment.

ARM TYPE ATC

The 20-tool arm type magazine is activated by electric motor transmitted by U-cam mechanism, featured with the fastest tool change speed and it bi siewxrionL Ensom tool selection.

CHIPS FLUSHING NOZZLES

Coolant flushing nozzles on rear inner wall of guard prevent jam of chips during operation.

AUTOMATIC LUBRICATION SYSTEM

The Lubrication System automatically measures and accurately distributes the oil to the slide ways, ballscrews and bearings.

SPLASH GUARD

The full-enclosed splash guard meets environmental protection and CE requirements.
It offers users a comfortable working environment.

CONTROL SYSTEM

The centralized control panel employs a touch sensing screen for user-friendly operation.
The humanized designed control panel has an elegant appearance.
Various controllers can be chose – Mitsubishi, Heidenhain, Fanuc and Siemens.

Specifications

MODEL LV5 LV8
TABLE
Table Size (mm) 660×410 910×510
Travel Rangers (X/Y/Z mm) 510/410/510 810/510/510
Max. Table Load (Kgs) 300 300
Spindle Nose to Table Surface (mm) 100~610 100~610
T-slot (Width x Distance x Number mm) 14x125x3 14x125x4
SPINDLE *LV5/LV8 both are available
Tool Shank & Pull Stud ISO30 ISO40
Spindle Inner Diameter (mm) 直結Ø45 直結Ø60
Spindle Center to Column (mm) 462 562
Spindle Speed (rpm) Direct-Drive 12000 (15000) 12000 (15000)
Spindle Speed (rpm) Built-in 24000 (36000/HSK-E40) –
Draw Bar Force (Kgf) 300 600
Main Motor (Con. / 30min. Kw) 3.7 / 5.5
AXIS SERVO MOTOR
Rapid Feed Rate (X/Y/Z m/min) 36 / 36 / 36
Feed Rate (X/Y/Z m/min) 20000
Power X/Y/Z (Kw) Mitsubishi 1.5 / 1.5 / 2.0 1.5 / 1.5 / 2.0
Torque X/Y/Z (Nm) Mitsubishi 4.8 / 4.8 / 6.4 4.8 / 4.8 / 6.4
ATC
ATC Type Disk Disk
Tool Selection (Bi-direction) Arm Type Arm Type
Tool Storage Capacity (Pcs) 20 20 24
Max. Tool Diameter (mm) Adjacent Tools Ø75/W/O Adjacent Tools Ø150 Adjacent Tools Ø75/W/O Adjacent Tools Ø150
Max. Tool Length (mm) 150 200 150 200
Max. Tool Weight (Kgs) 4 7 4 7
MISCELLANEOUS
Air Requirement (Kg/cm2) 6
Voltage (V) 220
Power Requirement (KVA) 15
Coolant Tank Capacity (L) 150
Machine Weight (Kgs) 3400 3600
Machine Height (mm) 2815
Floor Space (LxW mm) 1700 x 2250 2200 x 2380

 All Specifications And Designs Are Subject To Change Without Notice.

Accessories

ACCESSORIES
  • Air blast through spindle
  • Air blast for workpiece (nose)
  • Coolant flushing system
  • 3 axes telescopic covers
  • Full splash guard
  • Centralized automatic lubrication system
  • Working lamp
  • Operation status light
  • Cooling system
  • Air gun and water spray-gun
  • MPG handwheel
  • Heat exchanger
  • RS-232 Interface
  • Rigid tapping
  • Spindle oil cooler
  • Adjusting tools and box
  • Levelling bolts and pads
  • Operation and programming manual
CONTROL SYSTEM
  • MITSUBISHI M80
  • FANUC 0i-MF
  • HEIDENHAIN TNC640
  • SIEMENS 828D
  • FAGOR 8055i Plus

Quality Inspections

QUALITY THROUGH PRECISION INSPECTIONS

Each Pinnacle machine is subject to dynamic and static accuracy tests.

Pinnacle machine accuracy meets VDI 3441, ISO 10791, JIS B6336 and ASMEB5 standards.
