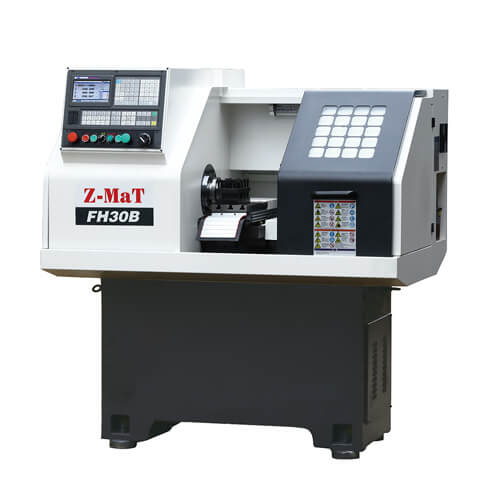

FH30B

Machine Characteristics
Center Mounted Ball Screw Assembly Reduces Friction and Side Torque – Improving Dynamic Characteristics and Long-Term Machine Stability.
Telescoping, Stainless Steel Ball Screw/ Way Guards Completely Protect Slide Operation From Chips, Coolant and Debris.
Large Contact Area Between Bed Ways and Machine Carriage Promotes Stability and Accuracy.
Double Row, Cylindrical Roller Spindle Bearings Improve Rigidity on Large Machines.

Standard Features

  • Manual 3-Jaw Chuck
  • 4-Station Tool Post
  • Work and Alarm Light
  • Full Enclosure Safety Guard
  • Automatic Lubrication System
  • Automatic Coolant System
  • Variable Frequency Drive
  • Pneumatic Collet (FH30B FH40B), Gang Type Tools (FH30B)

Optional Features

  • Hydraulic Chuck/ Collet
  • Servo Spindle Motor/ Drive
  • Different CNC Control Systems
  • High-Speed Spindle Unit
  • Larger Spindle Bore
  • C Axis and Live Tooling
  • Bar Feeder

Categories: , , Tags: ,

Capacity

Collet bar capacity/Chuck size: 30mm, *6”
Max swing dia over bed: ∅320mm
Max Workpiece piece: 180mm
Max Swing Over Slide: ∅75mm

Spindle

Spindle bore: ∅37mm
Bar dia capacity: ∅32mm
Spindle speed:3000 rpm
Main motor power:3.0KW, *4.0kW
Spindle nose :∅68 1:4

Spindle Bore: *Ø48mm
Drawbar Capacity: *Ø40mm
Spindle speed max.: *3000rpm
Spindle nose :∅901:4 ISpindle Power: 3.0kW, *4.0kW

Axis

X axis travel: 250mm
Z axis travel: 180mm
X/Z rapid traverse: 6/9m/min

Toolspost

Type: Gang type tooling
No of tool stations: 4-5
OD tool shank size: 16×16mm

Structure

Bed width: 220mm
Guideway type: Hard

Others

Power capacity: 6kVA
Overall dimension: 1350×1100×1420mm
Weight(about)：1000Kg
