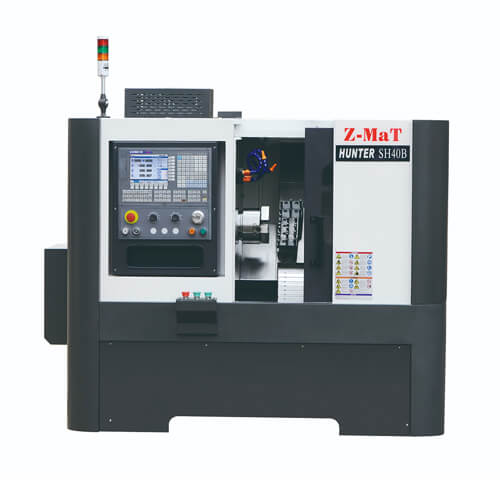

SH40B

Machine Characteristics
Low Friction Turcite-B Plastic Way Coating, Optional C Axis and Live Tooling, Large Contact area Between ways and carriage – optimized for interrupted cutting cycles.
45˚ degree slant bed structure offers efficient chip removal and easy operator access.
Compact structure, modular design, and high performance-to-cost ratio.

  • Ergonomically designed adjustable panel.
  • Center-mounted ball screw-less torsion and better accuracy.
  • The economical slant bed.
  • Low friction Turcite-B plastic Way Coating Optional C axis and Live tooling.
  • Large contact area between ways and carriage allows for interrupted cutting cycles.

Standard Features

  • Pneumatic Spring Collet
  • Gang Type Tools
  • Frequency Inverter
  • Work and Alarm Light
  • Full Enclosure Safety Guard
  • Automatic Lubrication System
  • Automatic Coolant System

Optional Features

  • Hydraulic Chucks
  • Spring Collet System
  • Hydraulic Tailstock
  • Different CNC Control Systems
  • Different Spindle

Categories: , , Tags: ,

Capacity

Bar dia capacity/Chuck size: 40mm, *6”
Max swing dia over bed: ∅300mm
Max workpiece length: 250mm
Max swing dia over slide: ∅90mm

Spindle

Spindle bore: ∅48mm
Bar dia capacity: ∅40mm
Spindle speed: 3000 rpm
Main motor power: 4.0kW

Axis

X axis travel: 300mm
Z axis travel: 250mm(collet), 160mm(chuck)
X/Z rapid traverse: 8/12m/min

Toolspost

Type : Gang type
No of tool stations:4-8
OD tool shank size:20×20mm

Structure

Slant bed degree:45°
Guideway type:Hard

Others

Power capacity: 8kVA
Overall dimension: 1650×1100×1600mm
Weight(about)：1600Kgs
