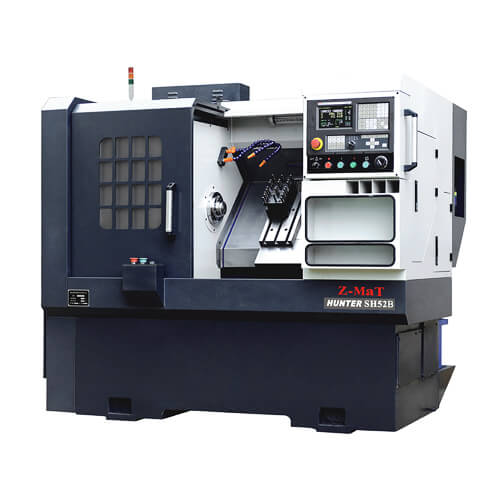

SH52B

Machine Characteristics
Low Friction Turcite-B Plastic Way Coating, Optional C Axis and Live Tooling, Large Contact area Between ways and carriage – optimized for interrupted cutting cycles.
45˚ degree slant bed structure offers efficient chip removal and easy operator access.
Compact structure, modular design, and high performance-to-cost ratio.

  • Ergonomically designed adjustable panel.
  • Center-mounted ball screw-less torsion and better accuracy.
  • The economical slant bed.
  • Low friction Turcite-B plastic Way Coating, Optional C axis, and Live tooling.
  • Large contact area between ways and carriage allows for interrupted cutting cycles.

Standard Features

  • Pneumatic Spring Collet
  • Gang Type Tools
  • Frequency Inverter
  • Work and Alarm Light
  • Full Enclosure Safety Guard
  • Automatic Lubrication System
  • Automatic Coolant System

Optional Features

  • Hydraulic Chucks
  • Spring Collet System
  • Hydraulic Tailstock
  • Different CNC Control Systems
  • Different Spindle

Categories: , , Tags: ,

Capacity

Bar dia capacity/Chuck size: 52mm, *8”, *6”
Max swing dia over bed: ∅300mm
Max Workpiece length: 320mm
Max swing Over Slide: ∅140mm

Spindle

Spindle Bore: Ø62mm
Drawbar Capacity: Ø52mm
Spindle Nose: A2-6
Spindle speed max.: 2000rpm,  *4000rpm
Spindle Power: 5.5kW

Spindle Bore: *Ø48mm
Drawbar Capacity: *Ø40mm
Spindle Nose: *A2-5
Spindle speed max.: *3000rpm, *4500rpm
Spindle Power: 5.5kW

Spindle Bore: *Ø55mm
Drawbar Capacity: *Ø46mm
Spindle Nose: *A2-5
Spindle speed max.: *2500rpm, *4500rpm, *5000rpm
Spindle Power: 5.5kW

Axis

X axis travel: 280mm, *340mm
Z axis travel: 320mm(collet), 240mm(chuck)
X/Z rapid traverse: 15/15m/min

Toolspost

Type: Gang type
No of tool stations: 4-8nos
OD tool shank size: 20×20mm

Tailstock

N/A

Others

Slant bed degree: 45°
Guideway type: Hard
Overall dimension: 1950×1360×1650mm
Weight(about)：2600Kgs
