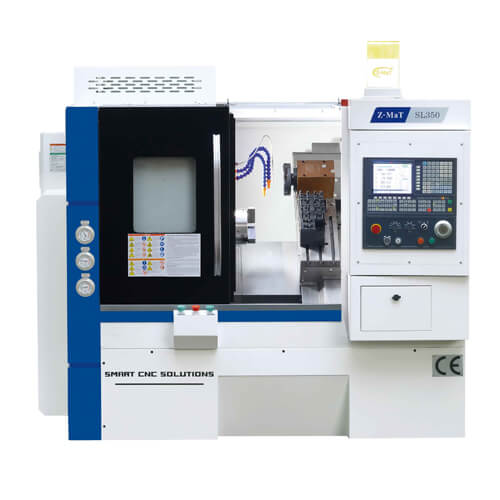

SL350

Machine Characteristics
The SL350 features a high-quality, heavy cast iron bed. The bed is heat-treated and annealed to provide a strong foundation for the SL series of lathes. The single-piece 35-degree slant bed design is extremely rigid – able to withstand heavy cutting forces. The SL350 will consistently produce high-precision parts for the long term.

  • Heat-treated and annealed high-quality cast iron base-provides a strong foundation for the high-speed, highly accurate SL Series of CNC Lathes
  • The true slant bed design is highly rigid and withstands heavy cutting forces
  • Slant bed also allows for easy operator access and efficient chip removal
  • The combination of high X/Z rapid speeds and gang tool set-up increases productivity tremendously. Highly accurate parts at the lowest cost
  • Quality machine at a value price. High volume production and good QC

Capacity

Chuck/ Collet: Hydraulic Collet, *Hydraulic Chuck 6″, 8″
Max.Swing Dia. Over Bed: Ø420mm
Max. Workpiece Length: Collet 300mm, Chuck 235mm
Max. Swing Dia. Over Slide: Ø140mm

Spindle

Spindle Bore: Ø48mm
Drawbar Capacity: Ø40mm
Spindle Nose: A2-5
Max. Spindle speed: 3000rpm, *4500rpm
Spindle Power: 3.7/5.5kW, *5.5/7.5 Kw

Spindle Bore: *Ø55mm
Drawbar Capacity: *Ø46mm
Spindle Nose: A2-5
Max. Spindle speed: *2500rpm, *4500rpm,*5000rpm
Spindle Power: *3.7/5.5kW, *5.5/7.5 kW

Axis

X Axis Travel: 350mm
Z axis travel: 300mm
X/Z axis rapid traverse: 28/28m/min

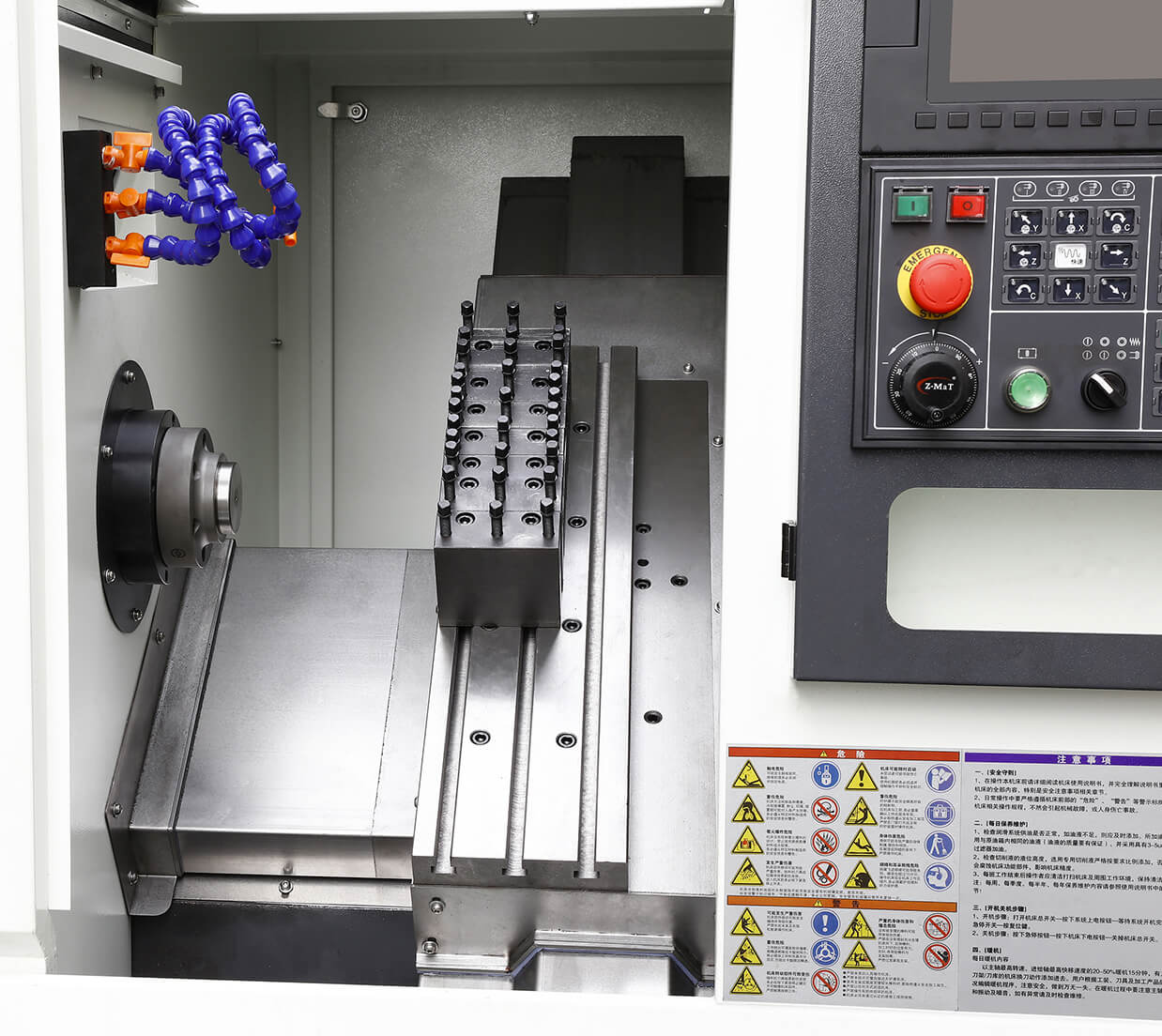

Toolspost

Turret type: Gang type
Number of Tool stations:: 5-8 station Gang Tooling
Tool shank size: 20×20/ ∅25mm

Structure

Slant Bed Degree: 35°
Guideway Way: Linear Motion

Others

Power Capacity: 12kVA
Overall Dimension(LxWxH): 2070x1550x1870mm
Weight(about): 2100Kg
