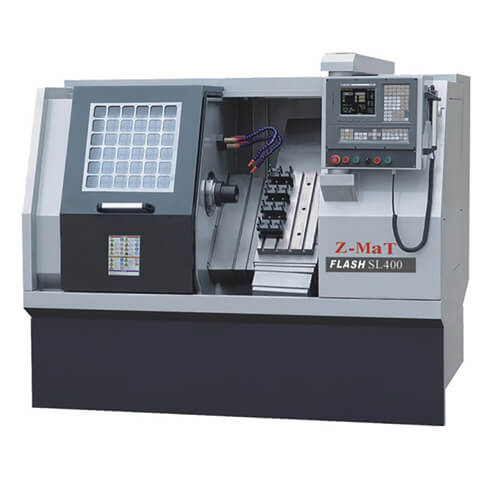

SL400

Machine Characteristics
Robust casting and flexible optional items are available for various machining jobs.

  • Heat-treated and annealed high-quality cast iron base-provides a strong foundation for the high-speed, highly accurate SL Series of CNC Lathes
  • The true slant bed design is highly rigid and withstands heavy cutting forces
  • Slant bed also allows for easy operator access and efficient chip removal
  • The combination of high X/Z rapid speeds and gang tool set-up increases productivity tremendously. Highly accurate parts at the lowest cost
  • Quality machine at a value price-High volume production and good QC

Capacity

Chuck/ Collet: Hydraulic Collet, *Hydraulic Chuck 6″, 8″
Max.Swing Dia. Over Bed: Ø400mm
Max. Workpiece Length: Collet 250mm, * Chuck 215mm
Max. Swing Dia. Over Slide: Ø124mm

Spindle

Spindle Bore: Ø55mm
Drawbar Capacity: Ø46mm
Spindle Nose: A2-5
Max. Spindle speed: 4500rpm
Spindle Power: 5.5/7.5 kW

Spindle Bore: *Ø62mm
Drawbar Capacity: *Ø52mm
Spindle Nose: A2-6
Max. Spindle speed: 2000rpm, *4000rpm
Spindle Power: *5.5/7.5 kW

Axis

X Axis Travel: 400mm
Z axis travel: 250mm
X/Z axis rapid traverse: 10/14m/min

Toolspost

Turret type: Gang type
Number of Tool stations:: 5-8 station Gang Tooling
Tool shank size: 20×20/ ∅25mm

Structure

Slant Bed Degree: 45°
Guideway Type: Linear Motion

Others

Power Capacity: 12kVA
Overall Dimension(LxWxH): 2000x1300x1710mm
Weight(about): 2400Kg
