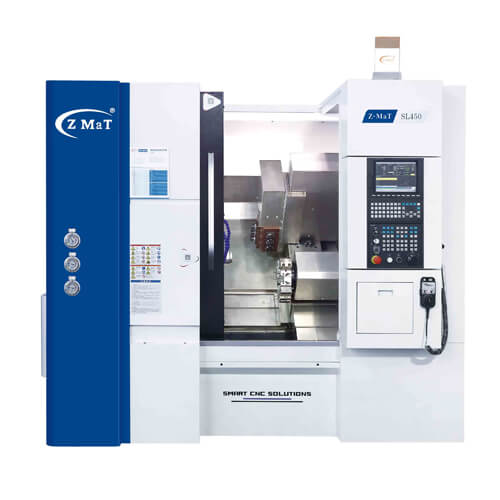

SL450

Machine Characteristics
The SL450 features a high-quality, heavy cast iron bed. The bed is heat-treated and annealed to provide a strong foundation for the SL series of lathes. The single-piece 35-degree slant bed design is extremely rigid – able to withstand heavy cutting forces. The SL450 will consistently produce high-precision parts for the long term.

  • Heat-treated and annealed high-quality cast iron base provides a strong foundation for the high-speed, highly accurate SL Series of CNC Lathes
  • The true slant bed design is highly rigid and withstands heavy cutting forces
  • Slant bed also allows for easy operator access and efficient chip removal
  • The combination of high X/Z rapid speeds and gang tool set-up increases productivity tremendously. Highly accurate parts at the lowest cost
  • Quality machine at a value price volume production and good QC

Capacity

Chuck/ Collet: Hydraulic Collet, *Hydraulic Chuck 6″, 8″
Max.Swing Dia. Over Bed: Ø400mm
Max. Workpiece Length: Collet 430mm, Chuck 4000mm
Max. Swing Dia. Over Slide: Ø160mm

Spindle

Spindle Bore: Ø55mm
Drawbar Capacity: Ø46mm
Spindle Nose: A2-5
Max. Spindle speed: 4500rpm
Spindle Power: 5.5/7.5 Kw

Spindle Bore: *Ø62mm
Drawbar Capacity: *Ø52mm
Spindle Nose: A2-6
Max. Spindle speed: 2000rpm, *4000rpm
Spindle Power: 7.5kW/ 5.5kW

Axis

X Axis Travel: 450mm
Z axis travel: 410mm
X/Z axis rapid traverse: 25/25m/min

Toolspost

Turret type: Gang type
Number of Tool stations:: 5-9 station Gang Tooling
Tool shank size: 20×20/ ∅25mm

Structure

Slant Bed Degree: 45°
Guideway Way: Linear Motion

Others

Power Capacity: 12kVA
Overall Dimension(LxWxH): 2350x1770x2100mm
Weight(about): 2800Kg
