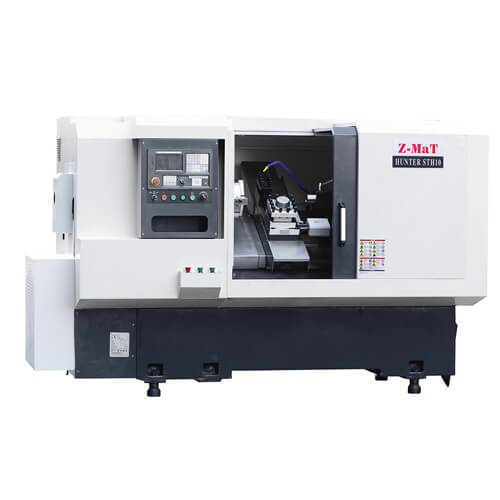

STH10

Machine Characteristics
STH CNC lathes are designed to provide a cheaper and easier machining option while providing real production capacity and accuracy. Perfect for R & D, education, manufacturing or just getting a business started. STH Series CNC lathes are a very affordable option that will allow you to accomplish your machining tasks easier and faster.

  • 30° slant bed-efficient chip flow and easier operator access.
  • Ergonomically designed adjustable panel.
  • Center-mounted ball screw-less torsion and better accuracy.
  • STH10 and STH12 have cylindrical roller spindle bearings.
  • The most economical slant bed with tailstock in the market

Standard Features

  • Manual 3-Jaw Chuck
  • 4-Station Tool Post + gang plate
  • Manual Tailstock
  • Automatic Lubrication System
  • Automatic Coolant System

Optional Features

  • Hydraulic Chucks
  • Spring Collet System
  • Hydraulic Tailstock
  • Different CNC Control Systems
  • Different Spindle

Categories: , , Tags: ,

Capacity

Chuck size: 10”
Max swing dia over bed: ∅450mm
Max workpiece length: 600mm
Max swing dia over slide: ∅250mm

Spindle

Spindle Bore: Ø62mm
Drawbar Capacity: Ø52mm
Spindle Nose: A2-6
Spindle speed max.: 2000rpm, *4000rpm
Spindle Power: 7.5kW, *11kW

Spindle Bore: *Ø81mm
Drawbar Capacity: *Ø70mm
Spindle Nose: *A2-8
Spindle speed max.: *1600rpm, *2500rpm
Spindle Power: 7.5kW, *11kW

Axis

X axis travel: 300mm
Z axis travel:600mm, 750( between two centers)
X/Z rapid traverse: 9/12m/min

Toolspost

Type: 4-station toolpost+Gang type tooling
No of tool stations: 4-6nos
OD tool shank size: 25*25mm

Tailstock

Type of Tailstock: Manual, *Hydraulic
Taper of tailstock quill: MT5
Travel of tailstock quill: 100mm
Travel of tailstock: 650mm

Others

Slant bed degree: 30°
Guideway type: Hard
Power capacity: 11kVA
Overall dimension:2500×1450×1650mm
Weight(about):3250Kgs
