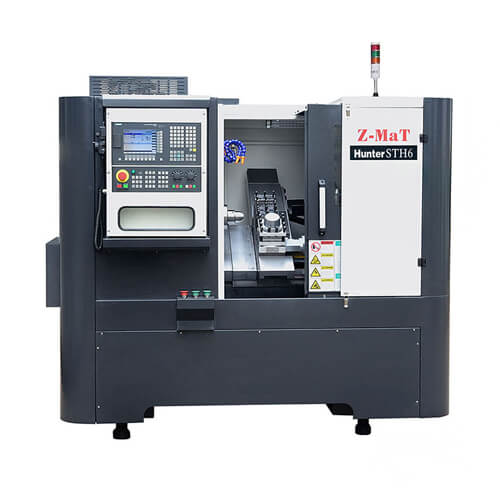

STH6

Machine Characteristics
STH CNC lathes are designed to provide a cheaper and easier machining option while providing real production capacity and accuracy. Perfect for R & D, education, manufacturing or just getting a business started. STH Series CNC lathes are a very affordable option that will allow you to accomplish your machining tasks easier and faster.

  • 30° slant bed-efficient chip flow and easier operator access.
  • Ergonomically designed adjustable panel.
  • Center-mounted ball screw-less torsion and better accuracy.
  • STH10 and STH12 have cylindrical roller spindle bearings.
  • The most economical slant bed with tailstock in the market


Standard Features

  • Manual 3-Jaw Chuck
  • 4-Station Tool Post + gang plate
  • Manual Tailstock
  • Automatic Lubrication System
  • Automatic Coolant System

Optional Features

  • Hydraulic Chucks
  • Spring Collet System
  • Hydraulic Tailstock
  • Different CNC Control Systems
  • Different Spindle

Categories: , Tags: ,

Capacity

Chuck size: 6”
Max swing dia over bed: ∅300mm
Max length of workpiece: 280mm, *350(collet)
Max swing dia over slide: ∅140mm

Spindle

Spindle Bore: Ø48mm
Drawbar Capacity: Ø40mm
Spindle Nose: A2-5
Spindle speed max.: 3000rpm, *4500rpm
Spindle Power: 4.0kW

Spindle Bore: *Ø55mm
Drawbar Capacity: *Ø46mm
Spindle Nose: *A2-5
Spindle speed max.: *2500rpm, *4000rpm
Spindle Power: 4.0kW

Axis

X axis travel: 300mm
Z axis travel:280mm, *350mm(collet)
X/Z rapid traverse: 8/12m/min

Toolspost

Type: 4-station toolpost+Gang type tooling
No of tool stations: 4-6 nos
OD tool shank size: 20×20mm

Tailstock

Type of Tailstock: Manual, *Pneumatic, *Hydraulic
Tailstock quill taper: MT3
Travel of tailstock quill: 100mm
Travel of tailstock: 300mm

Others

Slant bed degree: 30°
Guideway type: Hard
Power capacity: 8kVA
Overall dimension: 2100×1380×1760mm
Weight(about): 1700Kg
