Super M06

Machine Characteristics

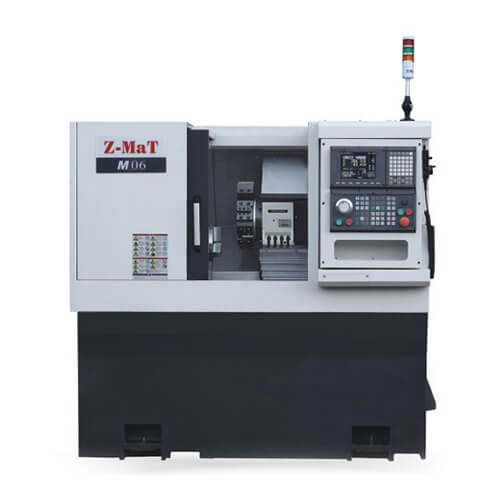

High Precision CNC turning centre M06 has a heavy-duty cast base with a “True Align” slant bed design. The machine bed, headstock, turret, and tailstock are aligned on the same plane which reduces heat build-up and results in thermal expansion. The net result is a higher precision machine tool.

  • Spindle runout≤2μm
  • Superior spindle unit achieves high speed and accuracy.
  • Space saving, compact footprint.
  • Smooth, efficient chip removal.
  • Servo spindle motor, Bosch Rexroth linear guideway, THK ball screw

Standard Features

  • Hydraulic 3-Jaw Chuck
  • 8-Station Servo Turret
  • Automatic Lubrication System
  • Automatic Coolant System
  • Work Light and Alarm Light
  • Ergonomic Operator Panel

Optional Features

  • 12-Station Turret
  • Different Chucks and Collets
  • Different CNC Control Systems
  • Different Spindle Bore Diameter
  • Chip Conveyor
  • Tool Setter
  • Bar Feeder
  • Automatic Hydraulic Tailstock

Categories: , , Tags: ,

Capacity

Chuck size: 6″, *8″
Max. swing dia. over bed: Φ360mm
Max. length of workpiece: 300mm
Max. swing dia. over slide: Φ160mm

Spindle

Spindle bore: Φ55mm
Max. dia. of through-hole: Φ46mm
Spindle nose: A2-5
Sindle speed: 4500rpm
Main motor power:5.5/7.5kW, *7.5/11Kw

Spindle bore: *Φ62mm
Max. Bar Capacity: *∅52mm
Spindle nose: *A2-6
Sindle speed: *4000rpm
Main motor power:5.5/7.5kW, *7.5/11Kw

Axis

X axis travel: 160mm
Z axis travel: 320mm
X/Z axis rapid traverse: 25/25m/min

Toolspost

Center height: 80mm
No. of tool station: 8, 12*
Tool shank size: 25×25mm

Tailstock

Type of tailstock: Hydraulic, *LM
Taper of tailstock quill: *MT4
Travel of tailstock quill: *80mm
Travel of tailstock: *80mm

Others

Slant bed degree: 30⁰
Guideway type: LM
Power capacity: 13kVA
Overall dimension: 1850×1880×1780mm
Weight: 3000Kgs
