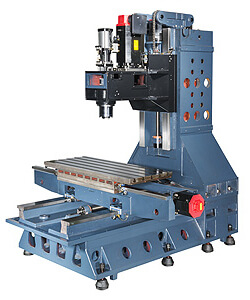

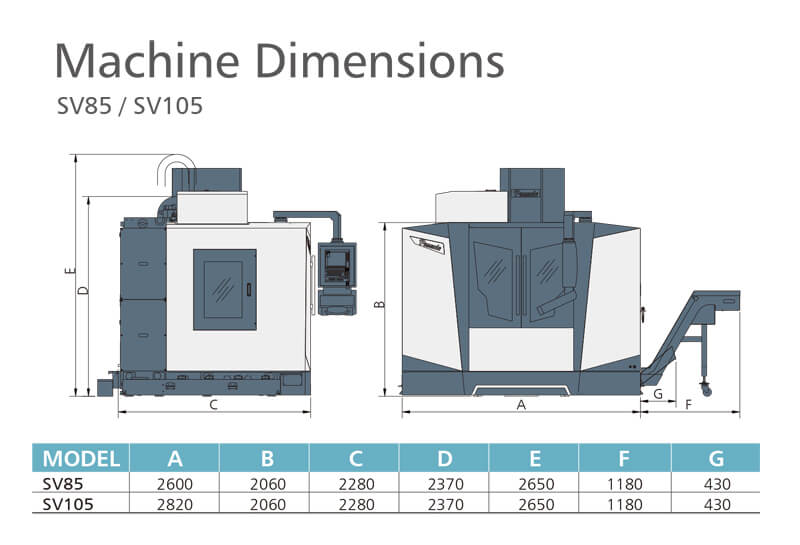

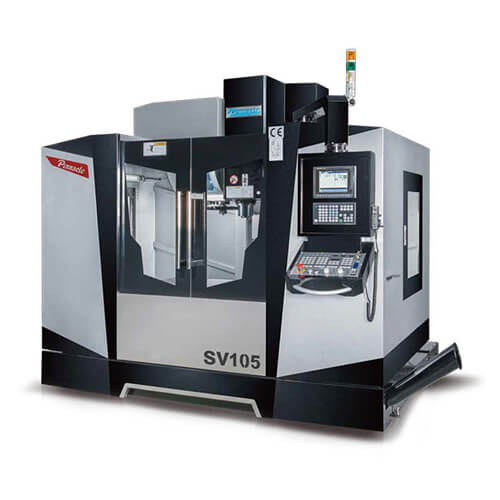

The Best Possible Structural Design

RUGGED CONSTRUCTION ASSURES OPTIMUM RIGIDITY AND STABILITY.

The major structural parts are manufactured from high quality Meehanite cast iron (GB 300),
tempered for stress relief with hardness over 190HB.
Box ways on the three axes.
Way surfaces are hardened to over HRC55 with over 2 mm depth.
Three axes are equipped with class C3 and 36mm (SV85/SV105) and 40mm (SV116/SV126)diameter precision ball screws.
Taiwan Patent No.: 177230, China Patent No.: 416211

RIGID, PRECISION SPINDLE

ASSURES HIGH QUALITY MACHINING

• Supported by superior precision P4 class bearings, the spindle provides an extra wide range of machining capacity and high speed.
• Floating unclamping system assures tool unclamping force will not transmit to the spindle bearings. It provides stable tool clamping and unclamping with the spindle and extends the spindle bearings’ life.
• The spindle is a cartridge-type.
• Choice of various spindle speeds – 6,000 rpm (ISO50, Belt Type/Gear Type), 8,000 rpm (ISO40/ISO50, Belt Type) 10,000 rpm (ISO40, Belt Type), 12,000 rpm (ISO40, Belt Type).
• The circulating oil cooling system on the spindle head prevents thermal expansion and offers the best precision machining environment.

CHIPS FLUSHING NOZZLES

Coolant flushing nozzles on rear inner wall of guard prevent jam of chips during operation.

COUPLINGS

Directly connected with ball screw and AC servo motors, the high precision flexible couplings offer the best rigidity
and keeps the accuracy of axial linear assembly under high speed movement.
