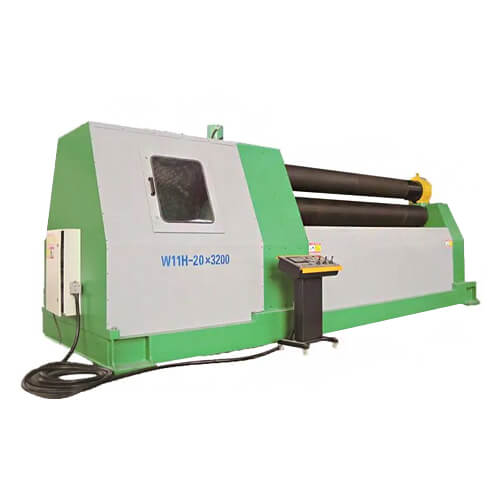

W11H Hydraulic Arc Adjust Plate Rolling Machine With 3 Rolls

Double pinch function, pre-bending, roll, and correct roundness can be finished without return once feeding the plate. Three drive rolls, the top roller fixed. Two bottom rollers move by an arc along a fixed rotary centre. Two bottom rollers can be lifting up and down at the same time or separately. The rotation of the top roller and the lifting of two bottom rollers were transmitted by hydraulic. Digital readout for lifting displacement.

Categories: , Tags: ,

Features

• Italy technical.
• Movable control panel, easy to operate.
• Digital readout for two bottom rollers lifting displacement, high precision cylinder.

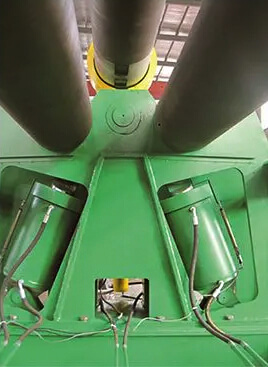

• Two bottom rollers lifting by arc, leverage increase the forming force.
• Three drive rolls, good rolling function for any thickness plate sending.
• The plate is always in the state of clamping during the rolling process, without slipping.
• The same diameter for three working rollers;
• Three rollers can get very close, a small diameter tube can be bent and checked cylinder.
• Cone bending attachment.
• CE certificate.

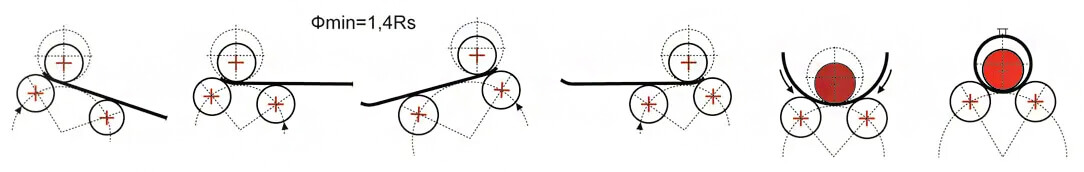

Working Principle
